SD Series — Flagship Roasters
Cast-iron double drum, gold-plated finish options, the Yoshan automatic roast-curve system, and Weishaupt burners with full hot air on production models.
Perfect time control, batch after batch
Cooling is calibrated to 2 minutes for specialty coffee and 2.5 minutes for blends, with beans discharged in a precise 13-second window. The SD Pro PLC system records your golden curve and replays it automatically — temperature difference is held within ±0.1°C during temperature chasing.
- Cast-iron double-walled drum
- PLC touch-screen, manual + full-auto modes
- Yoshan automatic roast curve system
- Artisan software compatible
- Optional loader, destoner and afterburner as full set
Compact & Shop Models

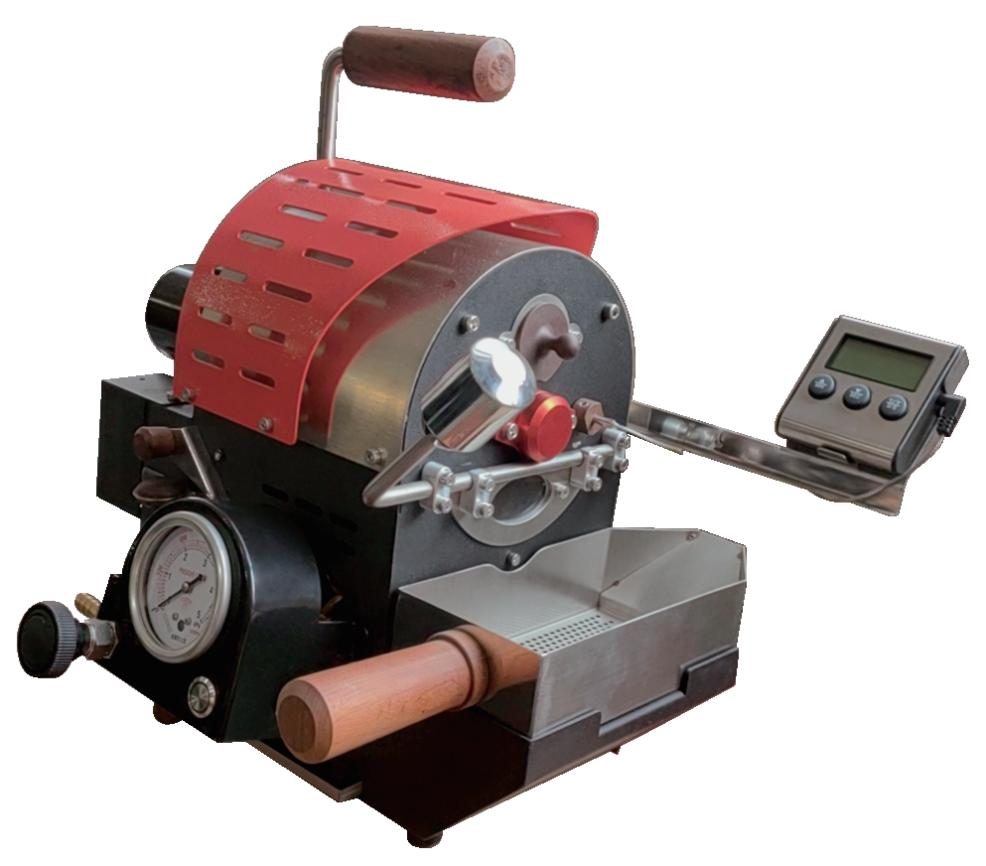

SD-100G Plus
Second-generation 100 g gas sample roaster with pressure gauge — six body colors.
| Batch capacity | 100–120 g |
|---|---|
| Drum | Solid 2 mm stainless steel 304 |
| Drum speed | 50 rpm |
| Heating | LPG (3/8″ connector) |
| Power | 220V / 30W |
| Dimensions | 344 × 313 × 362 mm |
| Colors | Red, yellow, blue, green, black, silver |

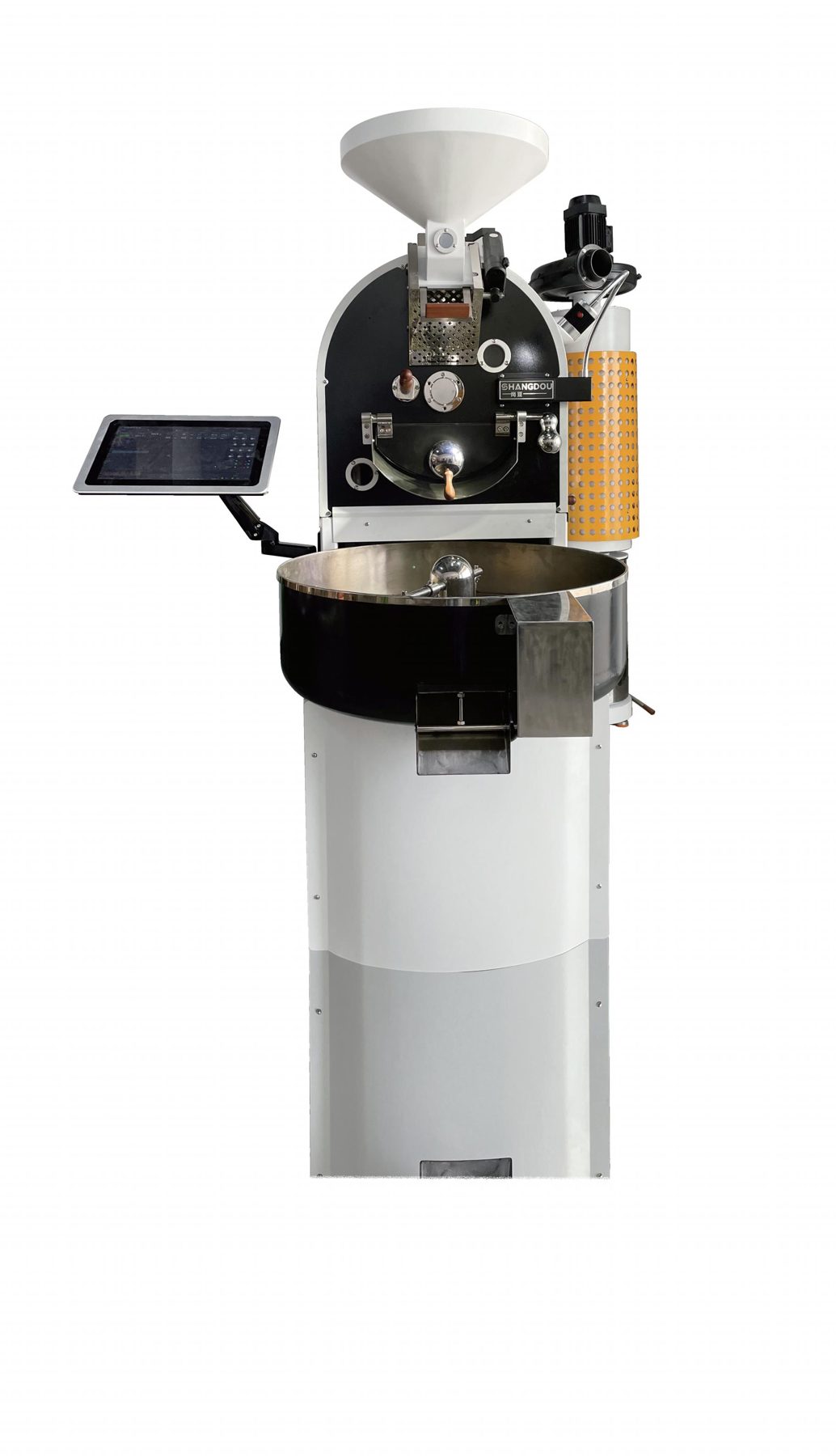

SD-1.5KG / SD-1.5 Pro
Entry flagship — button version or full-auto Pro with PLC touch screen.
| Batch capacity | 1–1.8 kg |
|---|---|
| Roast output | 4–9 kg/hour |
| Roast cycle | 6–12 min (preheat 180°C) |
| Cooling | 1–2 minutes |
| Drum | Cast iron |
| Heating | Gas (LPG/NG) or electric (380 V three-phase) |
| Voltage | AC 220V 50Hz, 600W |
| Gas consumption | 0.25 kg/hour |
| Dimensions / weight | 1350 × 800 × 1150 mm · 130 kg |

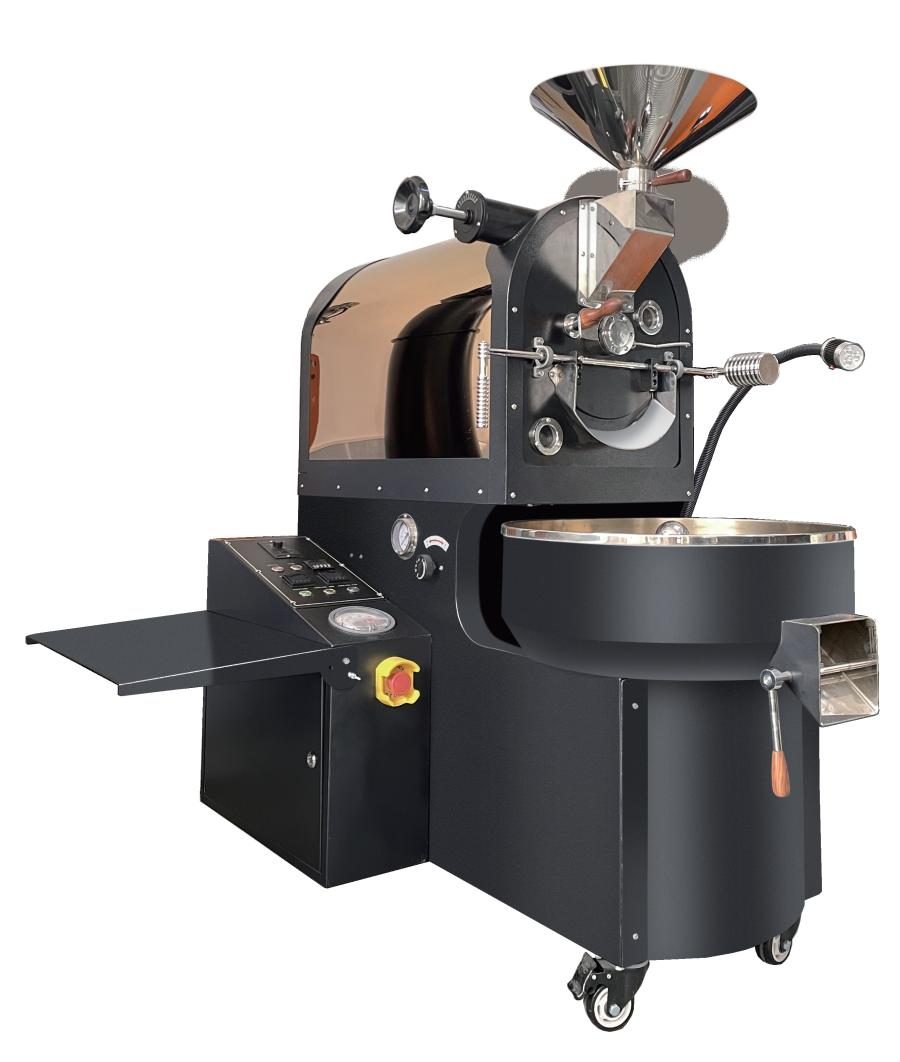

SD-3KG / SD-3 Pro
The café favorite — manual gas, electric heating-tube, or full-auto Pro.
| Batch capacity | 2–3 kg |
|---|---|
| Roast output | 8–12 kg/hour |
| Roast cycle | 10–15 min (preheat 180°C) |
| Cooling | 1–2 minutes |
| Drum | Cast iron |
| Heating | Gas (LPG/NG) or electric (220V/380V; full hot-air option) |
| Weight | 230 kg |
Production Models — Fully Automatic

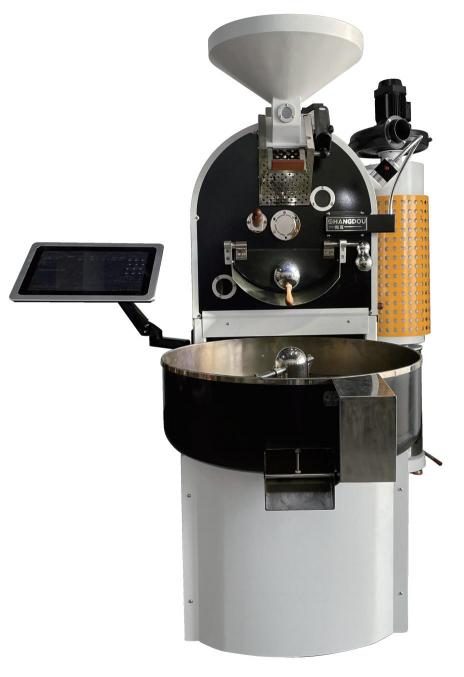

SD-6KG Pro
Semi-automatic and fully automatic 6 kg with the loader included.
| Batch capacity | 3.5–7 kg |
|---|---|
| Roast output | 18–28 kg/hour |
| Roast cycle | 8–15 min (preheat 180°C) |
| Cooling | 1–2 minutes |
| Drum | Cast iron, double layer |
| Heating | LPG (propane) / natural gas |
| Voltage | AC 220V 50Hz |
| Dimensions / weight | 2200 × 1300 × 2000 mm · 280 kg |

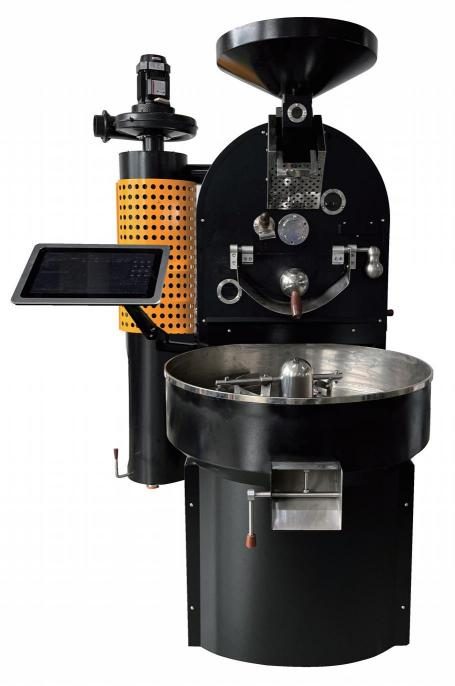

SD-12KG Pro
Full-auto 12 kg with PLC touch screen — roastery workhorse, loader included.
| Batch capacity | 3.5–13 kg |
|---|---|
| Roast output | 18–52 kg/hour |
| Roast cycle | 8–15 min |
| Cooling | 1–2 minutes |
| Drum | Cast iron |
| Heating | LPG / natural gas |
| Voltage | AC 220V 50Hz |

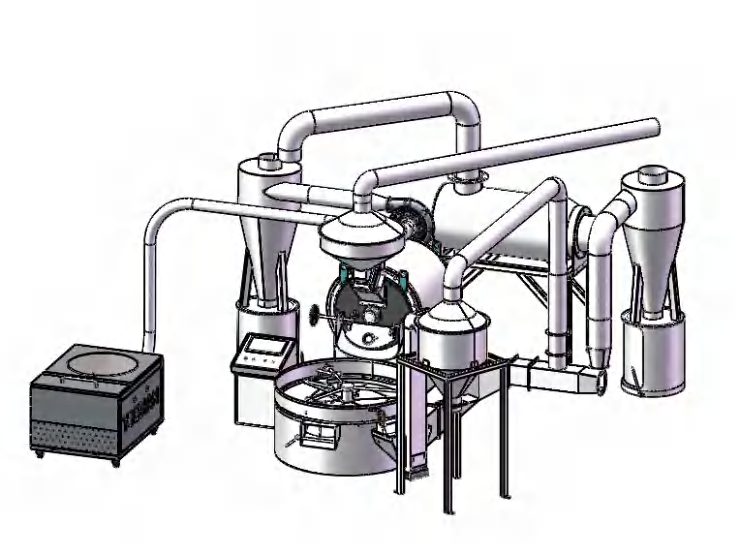

SD-15 / 20 / 30 / 60 / 120 Pro
Full-auto production roasters: SD-15 Pro with loader; SD-20 Pro with loader and destoner; SD-30, SD-60 and SD-120 Pro as complete plants with afterburner. Weishaupt burner and full hot air from SD-20 Pro; Siemens automation on SD-30 Pro and above.
| SD-15 Pro | 13–18 kg/batch · 39–54 kg/hour |
|---|---|
| SD-20 Pro | 15–22 kg/batch · 60–80 kg/hour |
| SD-30 Pro | 25–38 kg/batch · 90–120 kg/hour |
| SD-60 Pro | up to 60 kg/batch · 150–180 kg/hour |
| SD-120 Pro | 100–200 kg/batch · 200–240 kg/hour |
| SD-240 / SD-360 Pro (300 kg class) | customized production lines |
| Temperature range | 0–400°C adjustable |
| Cooling | 3–5 minutes |
Free on-site engineer installation available for Southeast Asia on SD-20 Pro and above. All industrial lines are customized to your factory layout.
Frequently asked questions
What is the difference between an SD manual model and an SD Pro?
Same cast-iron drum and body. The manual SD-1.5KG / SD-3KG use a button panel and gas valve — you drive the roast. SD Pro adds the PLC touch screen with the Yoshan automatic roast-curve system: record a profile, replay it, switch to manual any time. On 1.5–12 kg Pro models the hopper and drop door are still operated by hand; pneumatic discharge starts at SD-20 Pro. Overview: fully automatic roasters.
Why a double-walled cast-iron drum?
Cast iron stores heat, so the drum temperature does not collapse when a cold batch drops in, and the double wall keeps the bean-side surface from scorching. It is heavier and costs more to cast than a rolled stainless drum, which is why it is the flagship series. See why we cast our drums in iron.
Which SD Pro models include a loader?
SD-6 Pro, SD-12 Pro and SD-15 Pro are priced as a set with their loader (ask for the price without it); SD-20 Pro adds a destoner; SD-30, SD-60 and SD-120 Pro are complete plants with afterburner. Which extras you actually need: destoner, loader or afterburner?
How fast does an SD Pro cool and discharge?
Cooling is calibrated to 2 minutes for specialty coffee and 2.5 minutes for blends on shop models (3–5 minutes on 15 kg and above), and the batch drops in a 13-second window. Fast, timed cooling is what stops the roast where the profile ends — see cooling and quenching.
Can I get an SD roaster in electric?
SD-3KG: electric heating-tube version, 220 V or 380 V three-phase, USD 4,899, 40–60 day lead time, or electric full hot-air at USD 6,199. SD-1.5KG: electric heating-tube build at the same price as gas on 380 V three-phase. SD-1.5 Pro and SD-6 Pro: electric full hot-air at the same price as gas; SD-3 Pro electric full hot-air USD 11,209; all on 380 V three-phase. SD-12 Pro and larger are gas only. Electric roasters ship without a plug and are hard-wired to a breaker. Compare in gas vs electric.
How much do SD series roasters cost?
USD EXW Shenzhen, 2026: SD-100G Plus 899; SD-1.5KG 3,299; SD-3KG 4,599; SD-6KG 11,999. Pro: SD-1.5 Pro 5,399; SD-3 Pro 8,889; SD-6 Pro 12,999 and SD-12 Pro 15,999 with loader; SD-15 Pro 16,999 with loader; SD-20 Pro 38,599 with loader and destoner; SD-30 Pro complete plant 51,499. Background: what a commercial roaster costs.
What colours and finishes are available on SD?
Red, yellow, blue, green, black and silver on the SD-100G Plus; red, black, white, blue, green or a custom colour on production models. The SD-1.5 Pro drum has a gold-plated finish and the SD-3 Pro drum housing can be stainless, gold or rose gold. Colour is chosen at order — see powder coating and colour options.
Get your quotation within 24 hours
Send us your batch size, gas type and destination — our engineers reply with pricing, lead time and shipping costs.
